| Product Attribute | Attribute Value |
|---|---|
| Color | Orange |
| Contact Form | SPDT |
| Current Rating | 20 A |
| IP Rating | IP56 |
| Material | Cast Metal |
| Mounting Hole Size | 7.94 mm |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operation | Momentary |
| Series | |
| Standards | UL Listed ; CSA Certified |
| Termination | Screw |
| Type | Foot |
| Voltage Rating | 125-250 VAC |
| Weight | 8 |

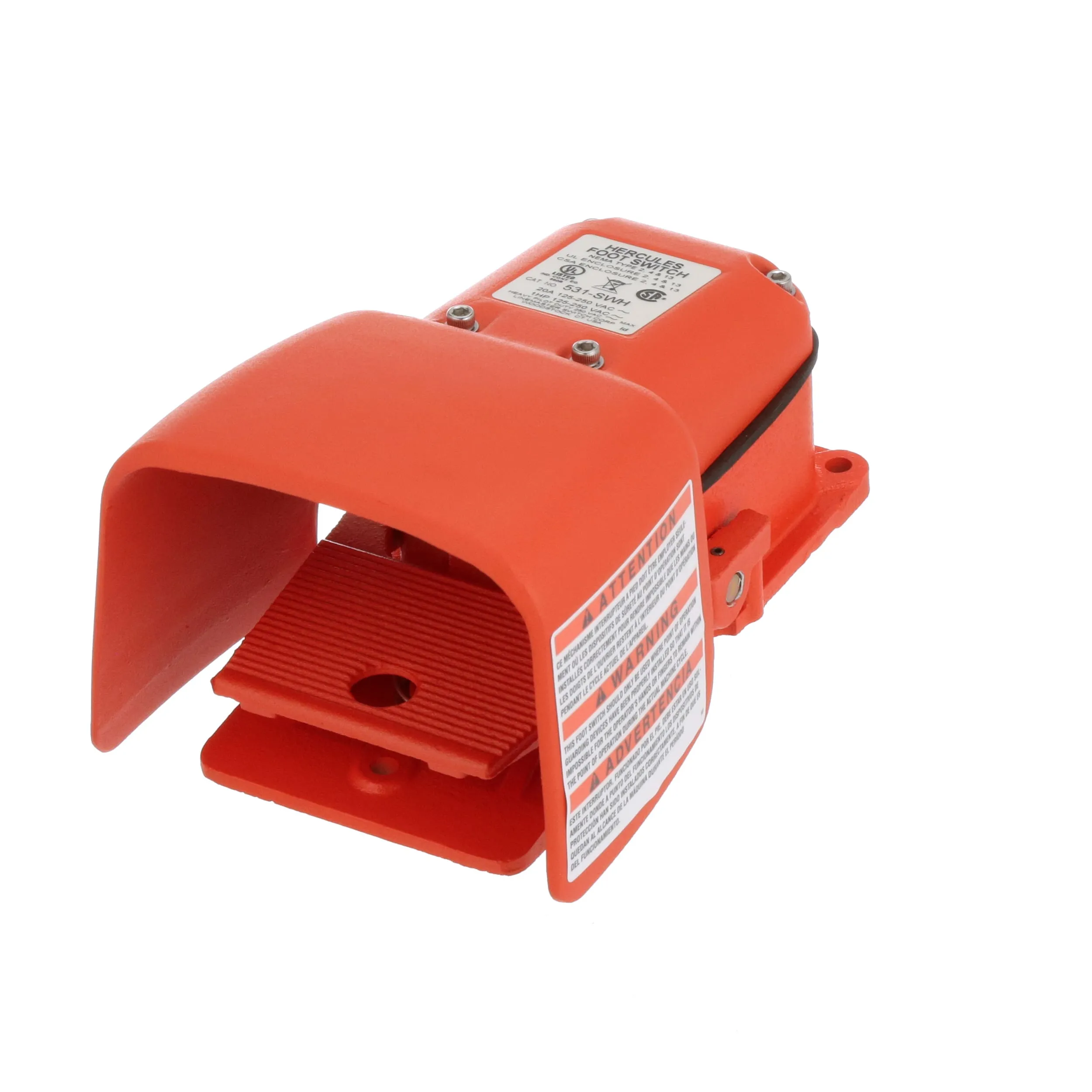

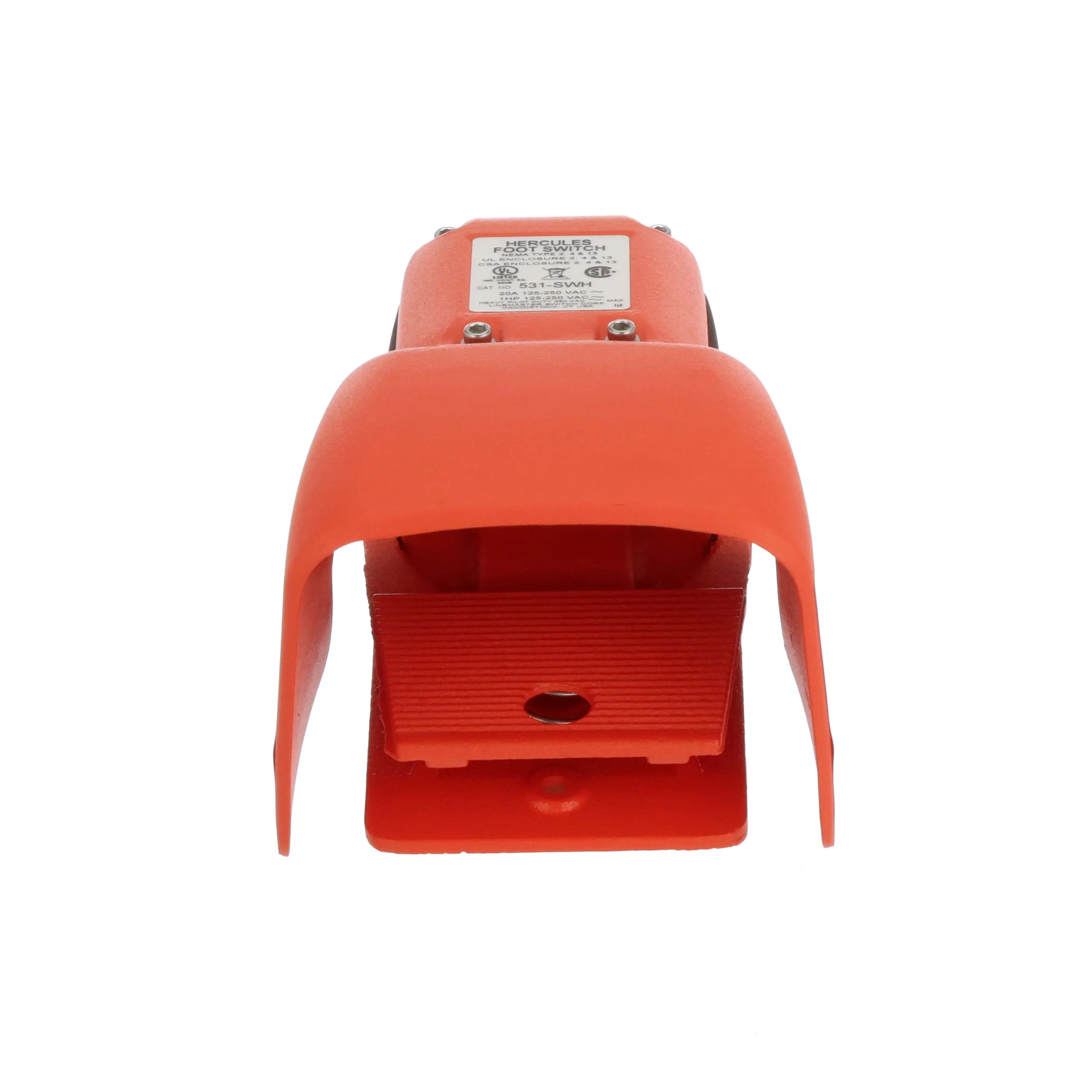

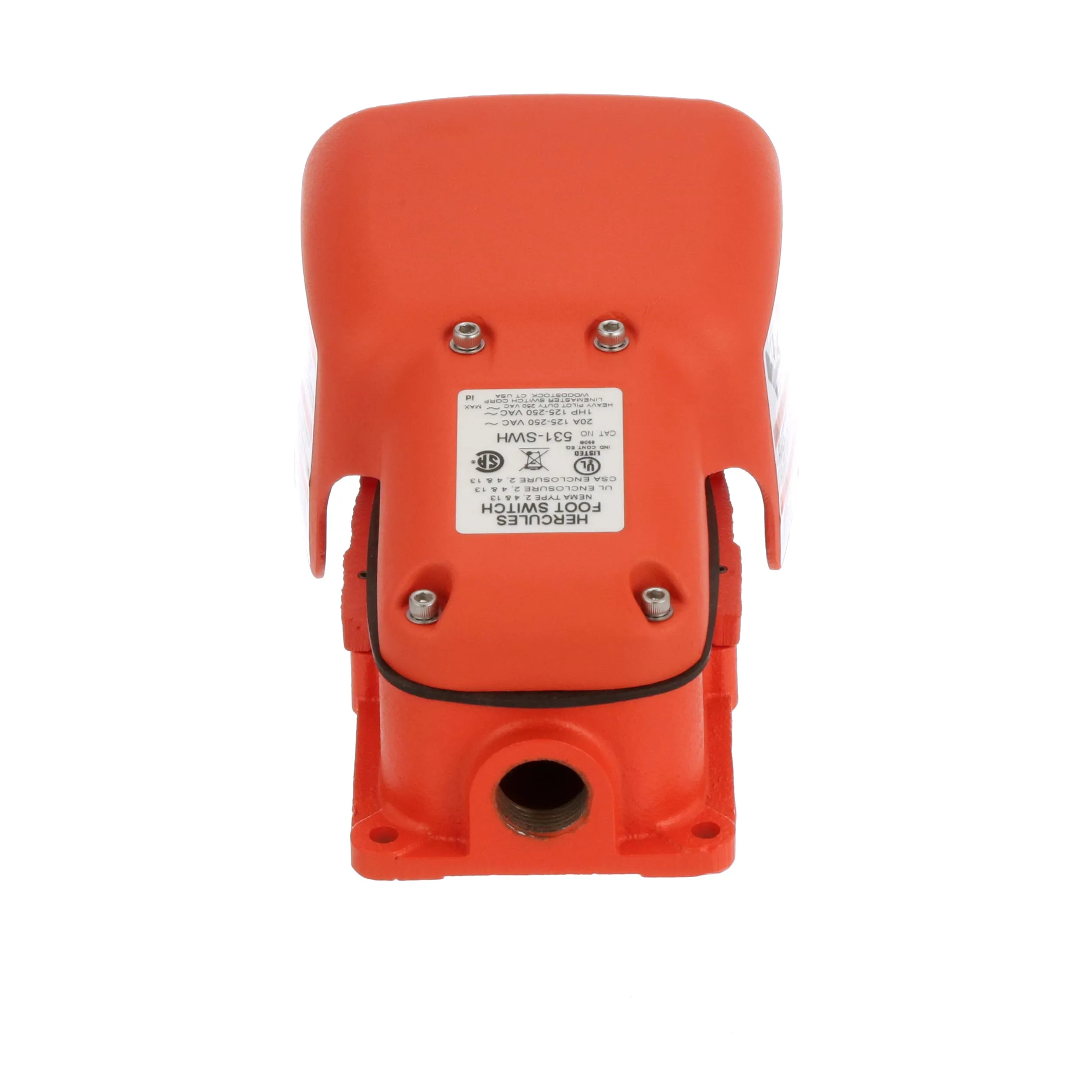

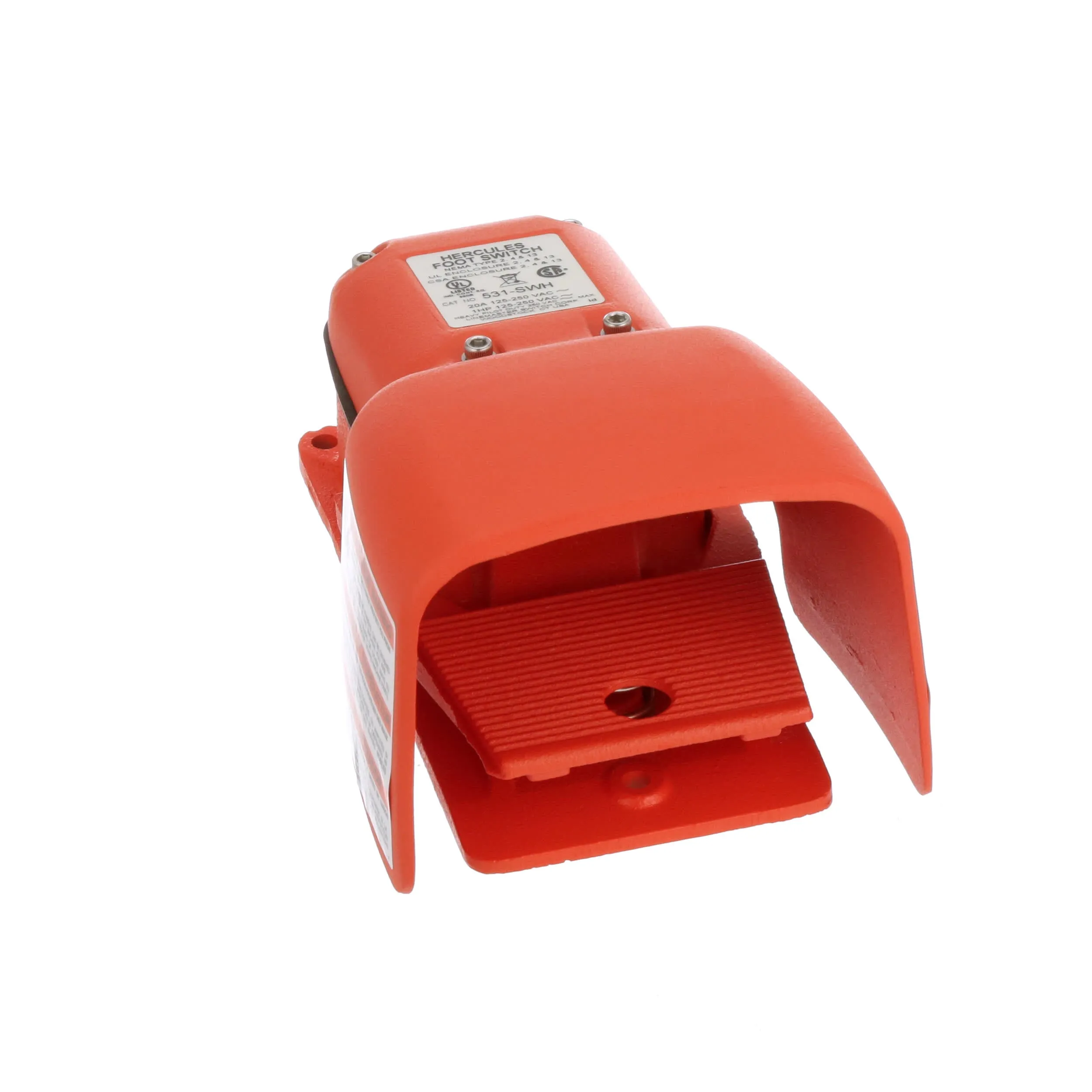

Overview
Features:
? Rugged cast metal enclosure has sufficient weight to keep the foot switch from sliding when being operated.
? All models have a neoprene cover gasket plus O-rings on the activating shaft and a separate ground screw.
? In all Maintained Contact models the release is accomplished by simply pressing the latch with a light forward movement of the toe. The release is placed under the Full Shield so falling objects cannot easily release it.
? Oversize "O" Shield models accept oversized safety shoes and metatarsal foot guards.
? "OX" Shield also available
? Special Dual 1/2" - 14 N.P.T. threaded conduit entry and metric sizes available to the O.E. M. on special order.
? Special Twin models available to the O.E.M. on special order.
? Painted Alert Orange.
? Single 3/4" - 14 N.P.T. threaded conduit entry is standard.
? 3 holes provided for rigid mounting to the floor or equipment.
? NEMA Type 2, 4 & 13
? UL ENCLOSURE 2, 4 & 13
? CSA ENCLOSURE 2, 4 & 13
? EN 60529 Degree of Protection IP56
? Drip tight – Dust tight - Watertight – Oil tight
